BADU 45/16
€465.00
Available in approx. 14 days, delivery time 2-4 days
Product information "BADU 45/16"

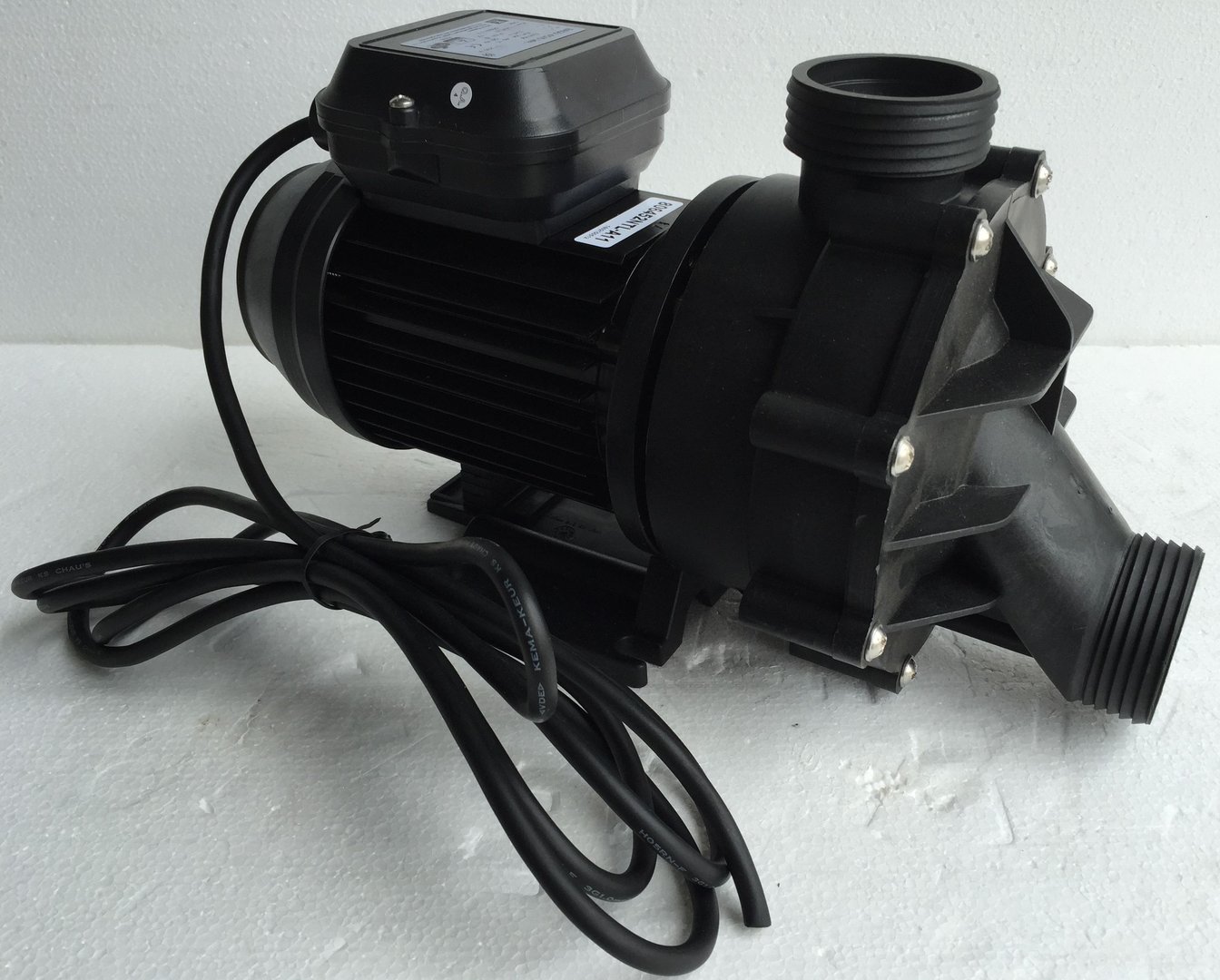

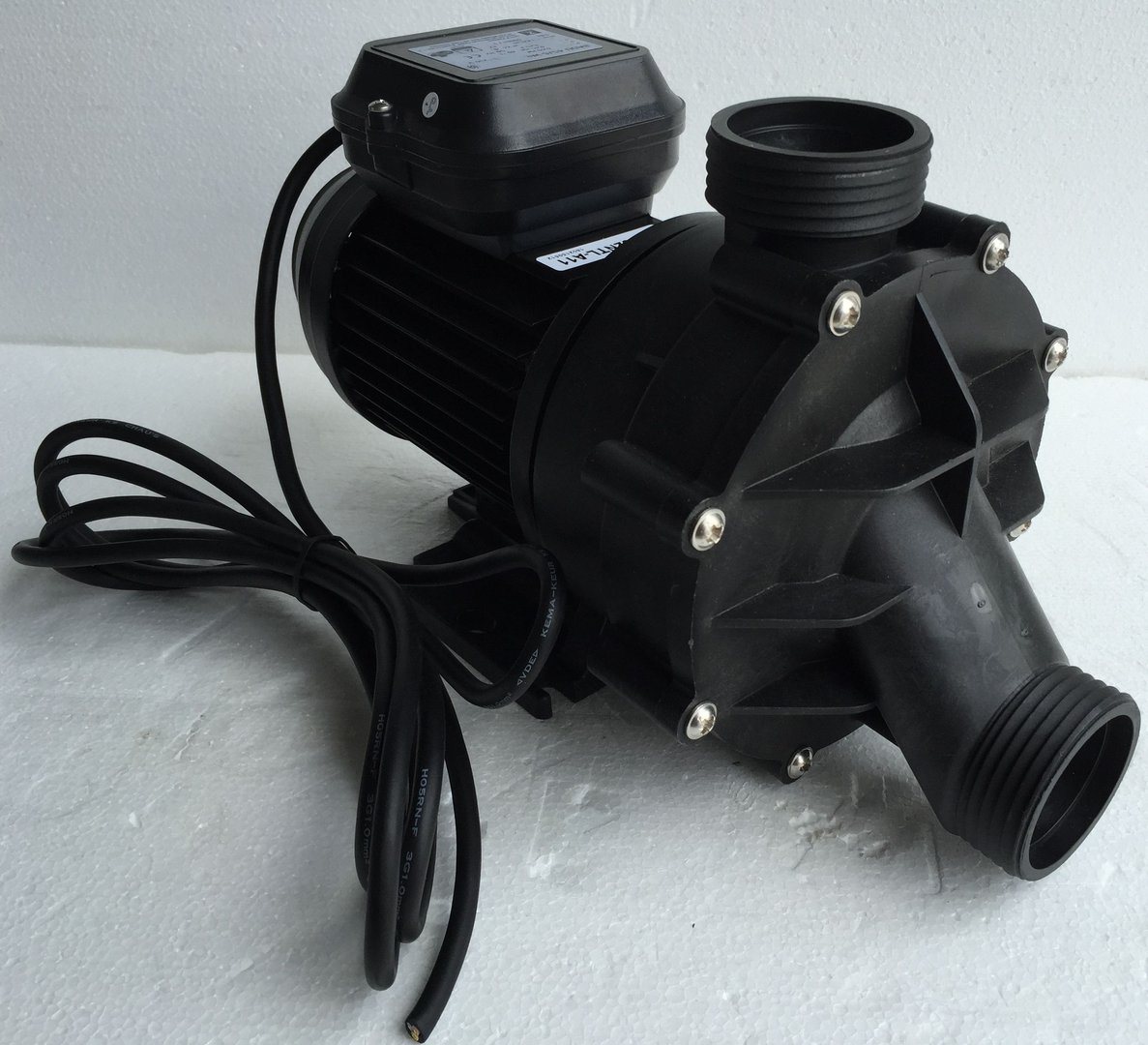

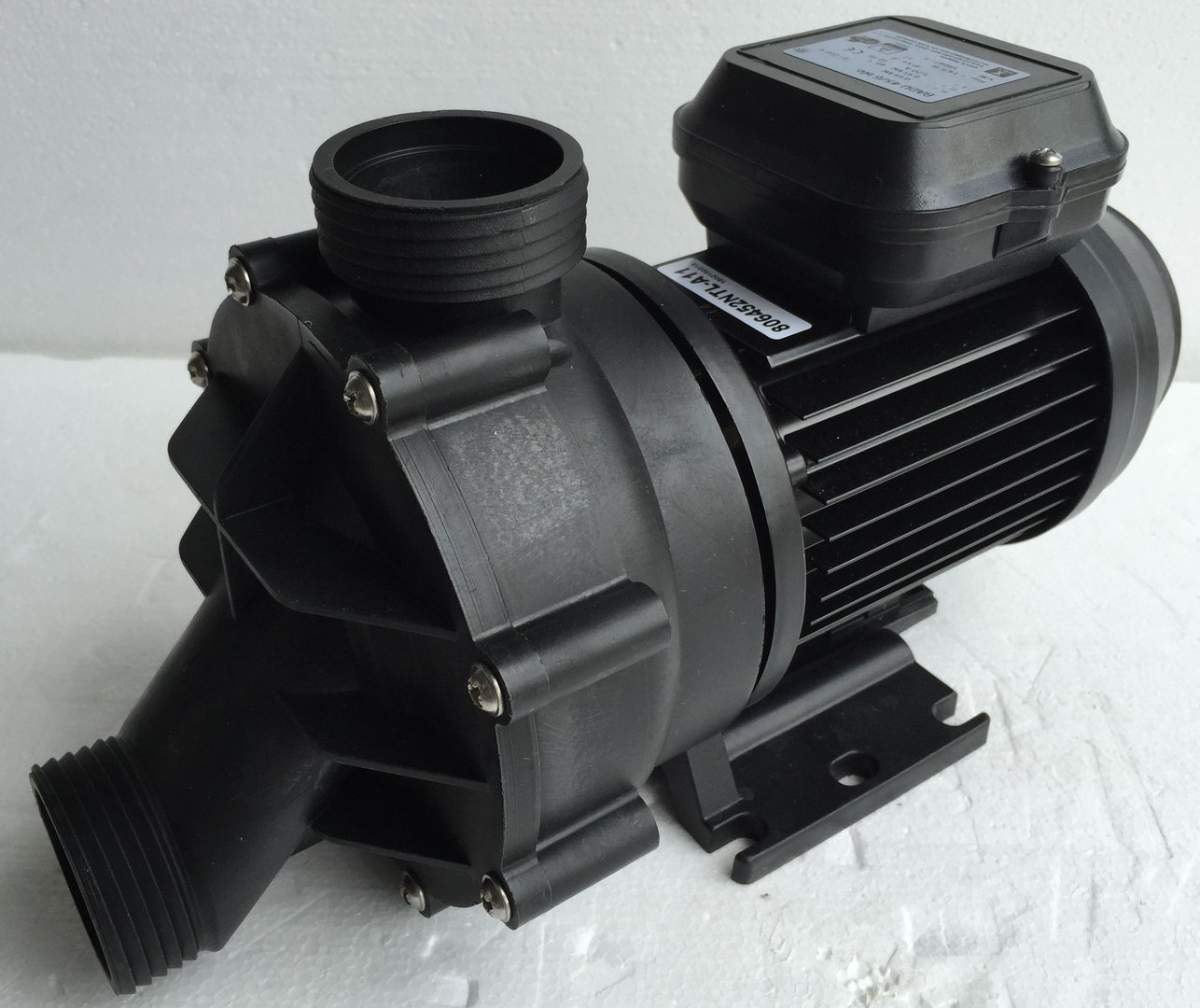

Non self-priming pool circulation pump BADU 45/16 We., alternating current version, with self-draining unit and a flow rate of approximately 15 m³/h the perfect jet pumps for bath tubs.
1~230 Volt
Hmax= 15.5 m
Qmax= 18 m³/h
techQ: 15 m³/h
techH: 11 m WS
Pool size: 1 - 30 m³
Power output: 0.80 kW
Inlet / outlet connection d (mm): 50 / 50
| Pool size in m³: | 1 - 30 |
| Flow rate Q in m³/h: | 15 |
| Total head H in m WS: | 11 |
| Motor performance in kW (P2): | 0.80 |
| Pump casing: | PP TV 40 |
| Gland housing: | PP TV 40 |
| Mechanical seal: | carbon / ceramic / NBR |
| Screws: | brass / stainless steel |
Solid, small jet pump with self-draining unit.
For bath tubs and whirlpools.
The BADU 45 self-draining pump series with flow rates ranging from 7.5 m³/h to 15 m³/h at 11 m are the perfect jet pumps for bath tubs.
Monoblock-type pump with integrated self-draining unit. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water providing complete electrical separation.
Special motors on request.
The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i. e. 5 g/l.
For higher salt concentrations please contact us.
Also available in AK version
