BADU 43/15, 230 V
€670.00
Available in approx. 14 days, delivery time 2-4 days
Product information "BADU 43/15, 230 V"

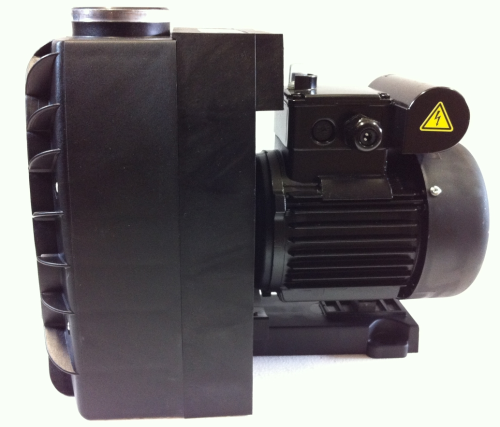

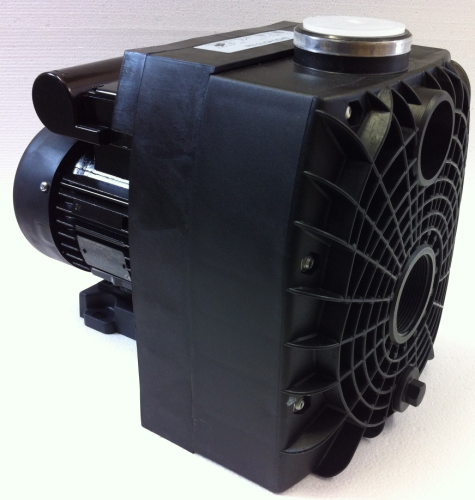

Non self-priming pool circulation pump BADU 43/15 We., alternating current version, with a flow rate of approximately 15 m³/h, the perfect jet and filter pump for whirlpools.
1~230 Volt
Hmax= 19 m
Qmax= 18 m³/h
techQ: 15 m³/h
techH: 8 m WS
Pool size: 30 - 60 m³
Power output: 0.75 kW
Inlet (Sa) / outlet (Da) connection (Rp): female thread 2" / 2"
| Pool size in m³: | 30 - 60 |
| Flow rate Q in m³/h: | 15 |
| Total head H in m WS: | 8 |
| Motor performance in kW (P2): | 0.75 |
| Pump casing: | PP TV 20 / GF 10 |
| Diffuser: | PP GF 30 |
| Impeller: | PP GF 30 |
| Mechanical seal: | carbon / ceramic / NBR |
| Screws: | Galvanised steel |
| Intermediate housing: | PP GF 30 |
| Gland housing: | PP GF 30 |
Medium-size jet pump and additional pump.
For whirlpools and added support in water circuits.
The BADU 43 pump series with its flow rate from 15 m³/h to 32 m³/h are the perfect jets and filter pumps for whirlpools.
Monoblock-type pump with a closed bellow-type mechanical seal mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water providing complete electrical separation.
Special motors on request.
The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i. e. 5 g/l.
For higher salt concentrations please contact us.
Also available in AK version
