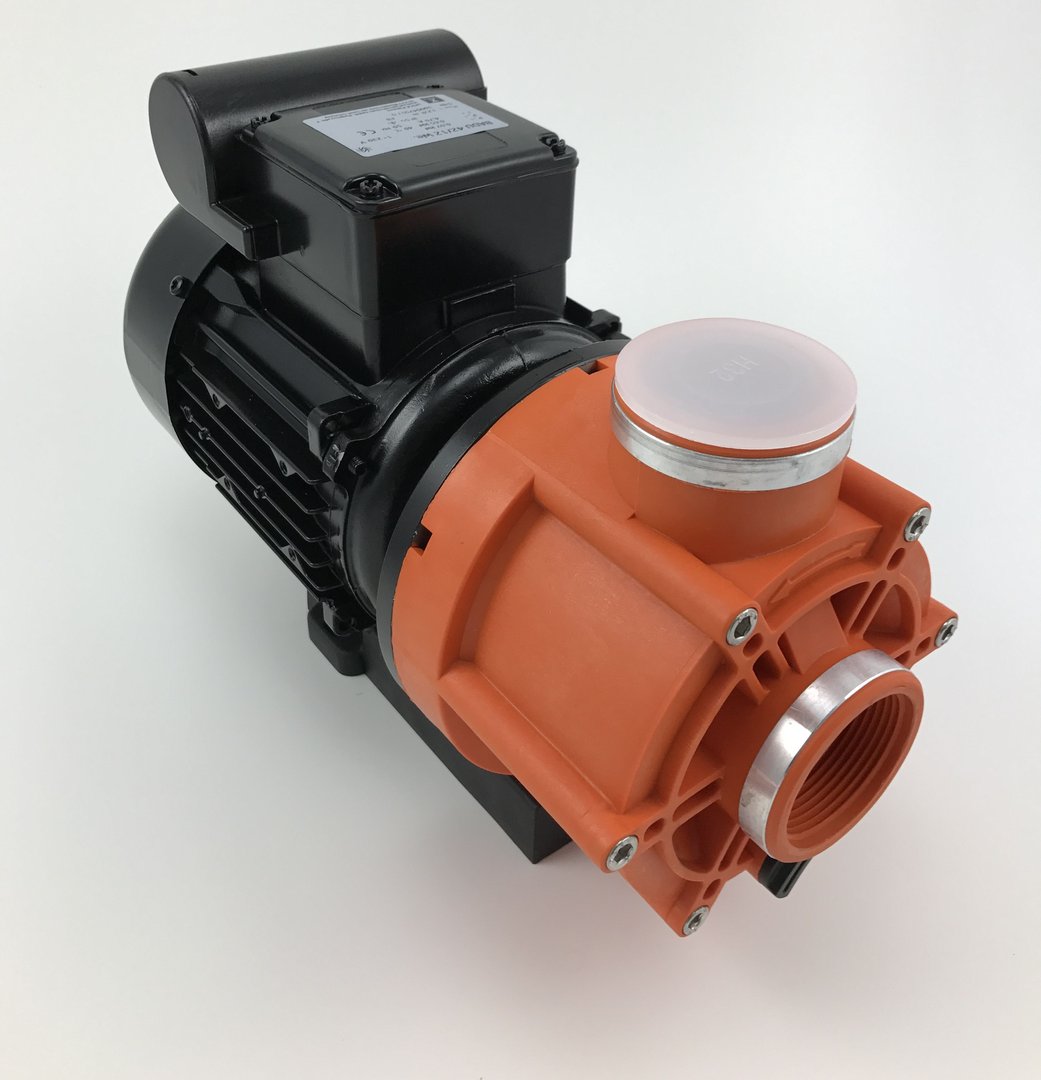

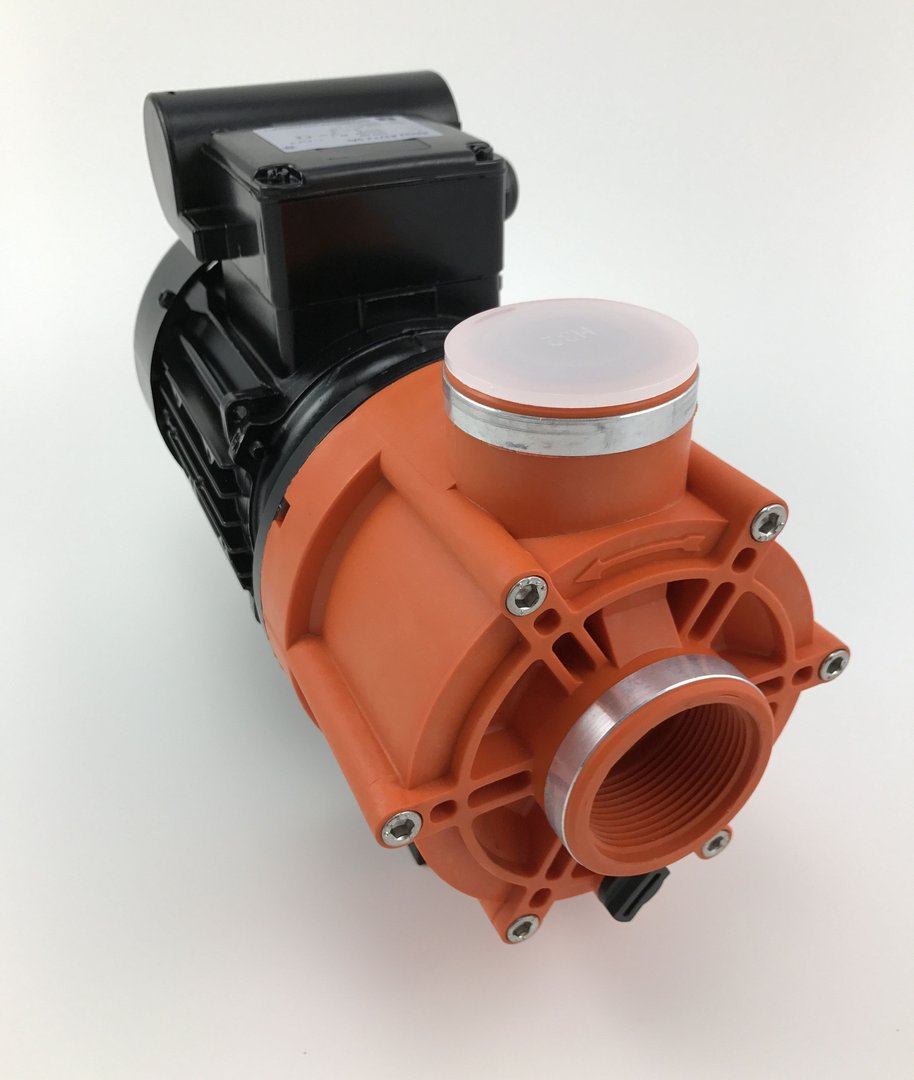

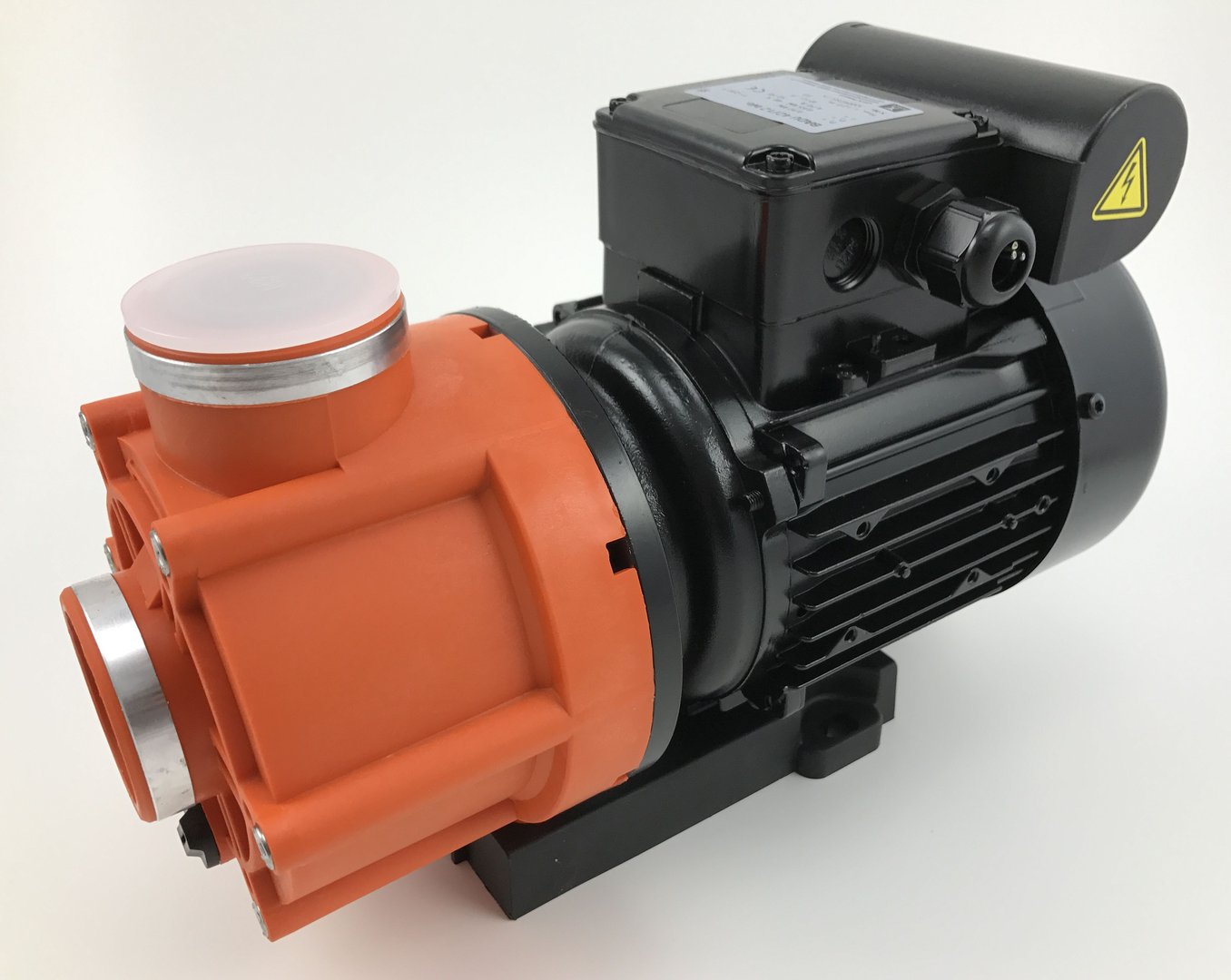

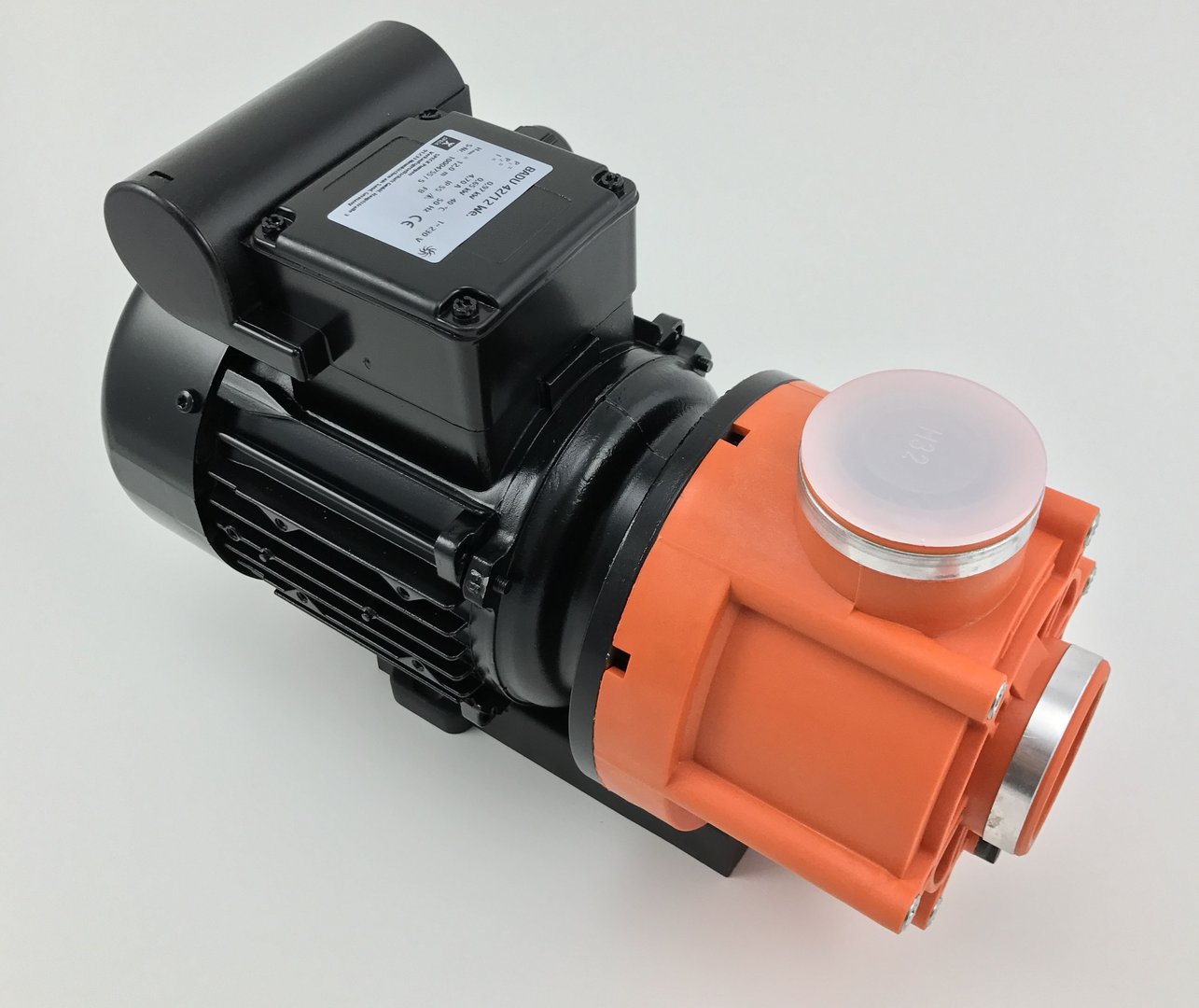

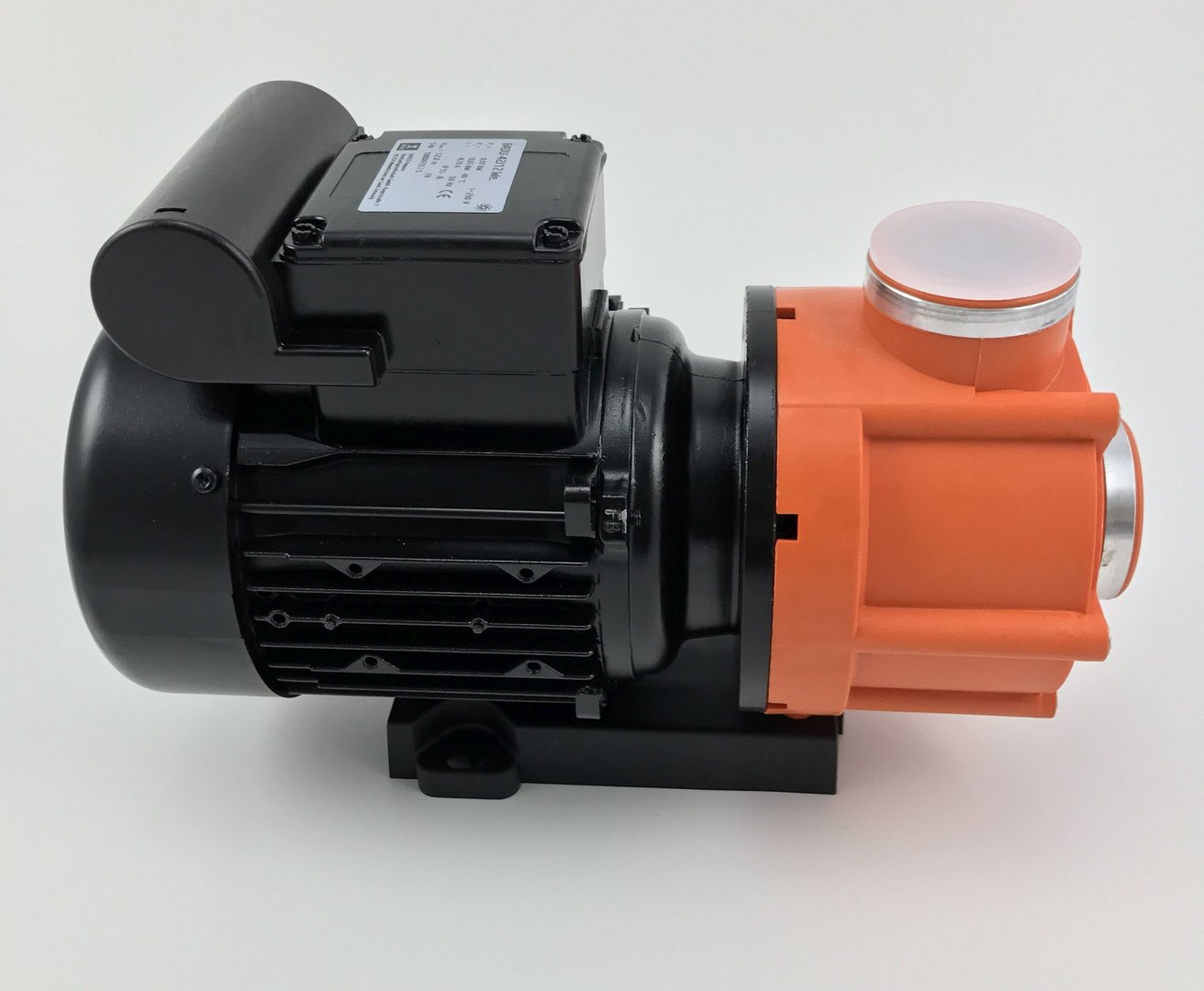

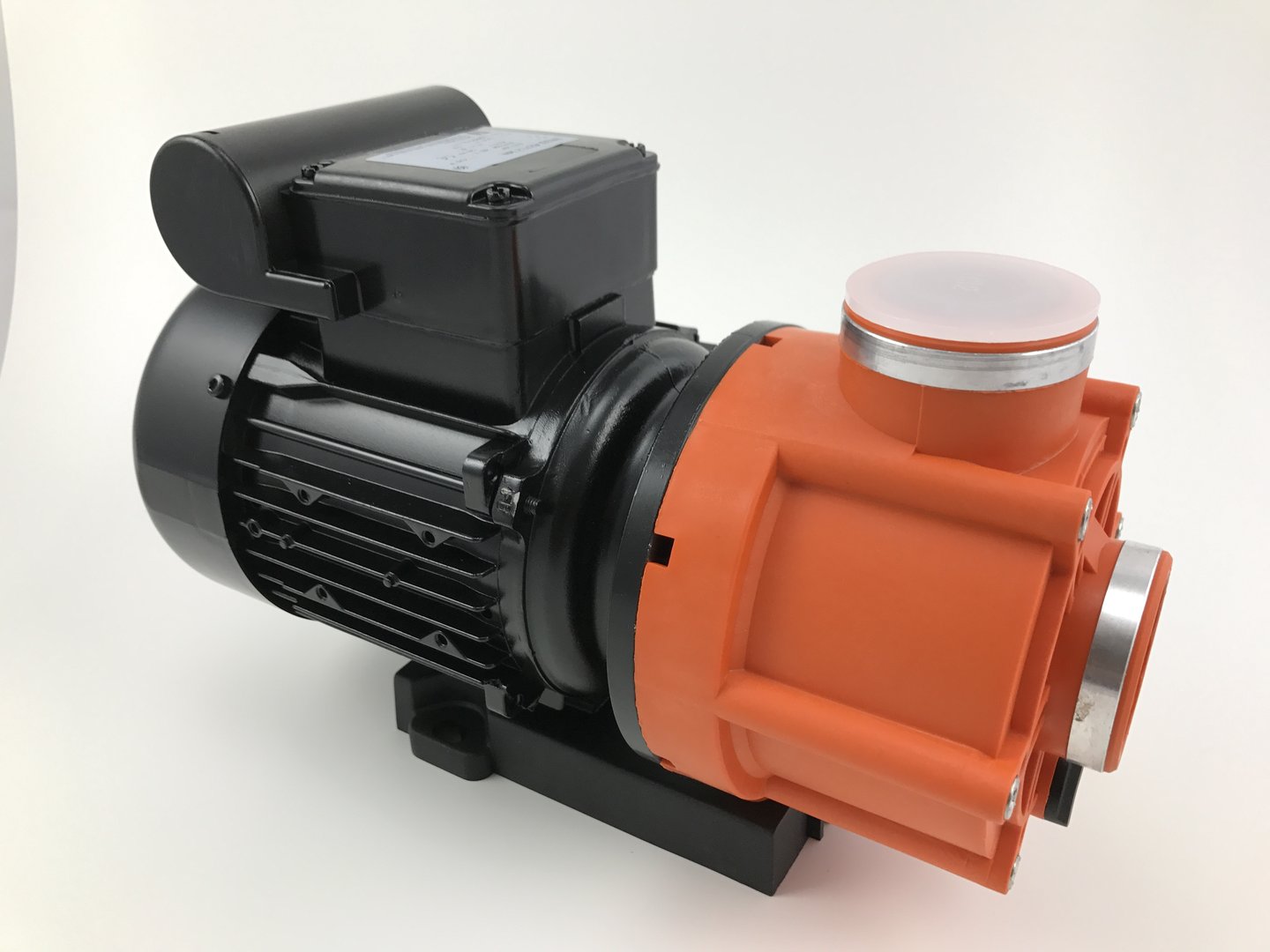

BADU 42/6, 400 V
€425.00
Available, delivery time: approx. 2-4 days
Product information "BADU 42/6, 400 V"
Non self-priming pool circulation pump BADU 42/6 Dr., three-phase version, for use with bath tubs and small whirlpools
3~Y/Δ 400/230 Volt
Hmax= 9 m
Qmax= 9 m³/h
techQ: 6 m³/h
techH: 6 m WS
Pool size: 10 - 30 m³
Power output: 0.30 kW
Inlet (Sa) / outlet (Da) connection (Rp): female thread 1 1/2 / 1 1/2
| Pool size in m³: | 10 - 30 |
| Flow rate Q in m³/h: | 6 |
| Total head H in m WS: | 6 |
| Motor performance in kW (P2): | 0.30 |
| Pump casing: | PP GF 30 |
| Gland housing: | PP GF 30 |
| Mechanical seal: | carbon / ceramic / NBR |
| Screws: | Galvanised steel |
Small jet pump and additional pump, available in 3 designs.
For bath tubs and small whirlpools.
BADU 42/6, BADU 42/9 and BADU 42/12 are the perfect jet pumps for bath tubs and whirlpools.
Monoblock-type pump with a closed bellows-type mechanical seal mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water! Complete electrical separation.
Special motors on request.
The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i. e. 5 g/l.
For higher salt concentrations please contact us.
Also available in AK version
