BADU 40/7, 230 V
€640.00
Available, delivery time: approx. 2-4 days
Product information "BADU 40/7, 230 V"

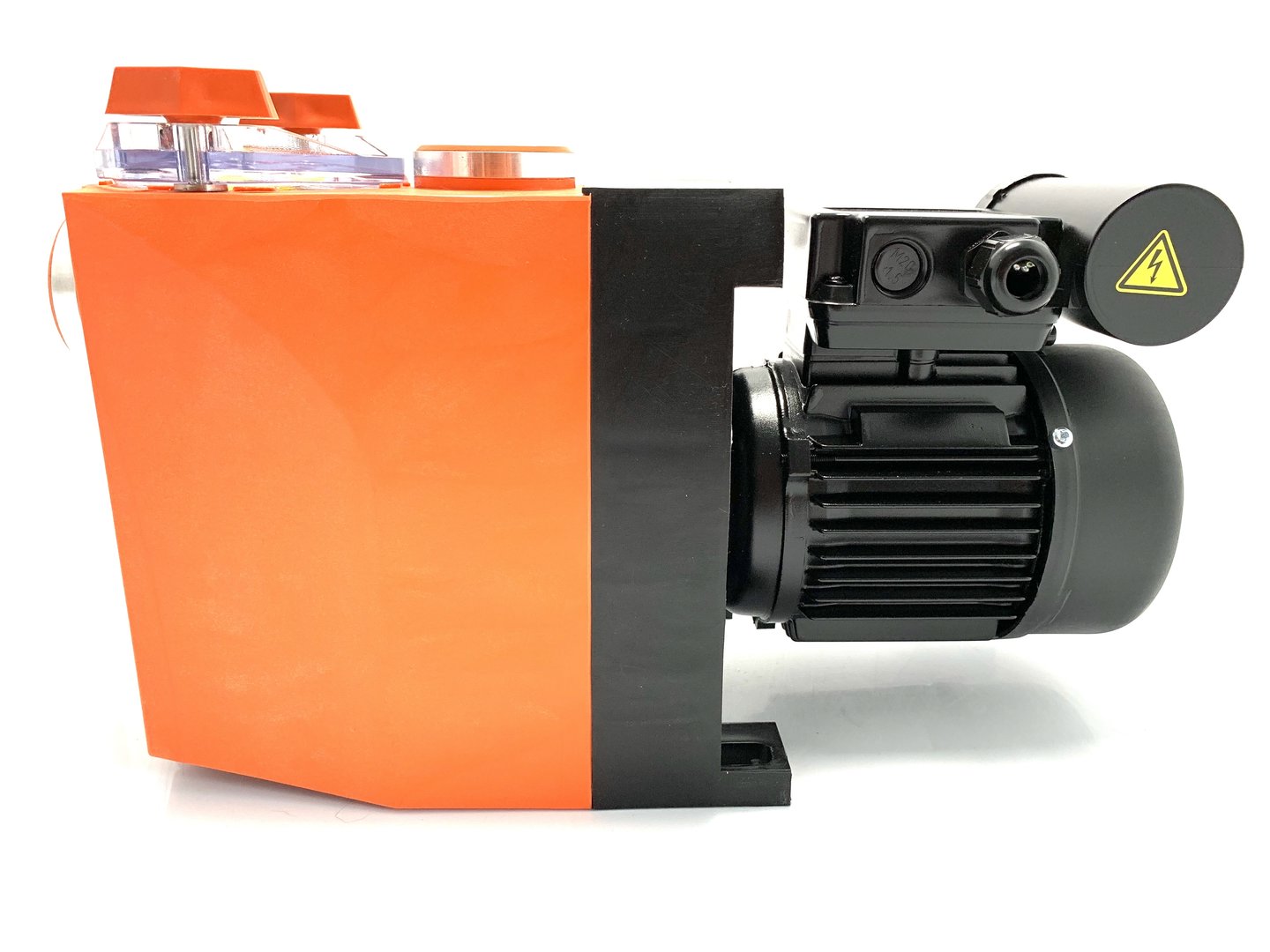

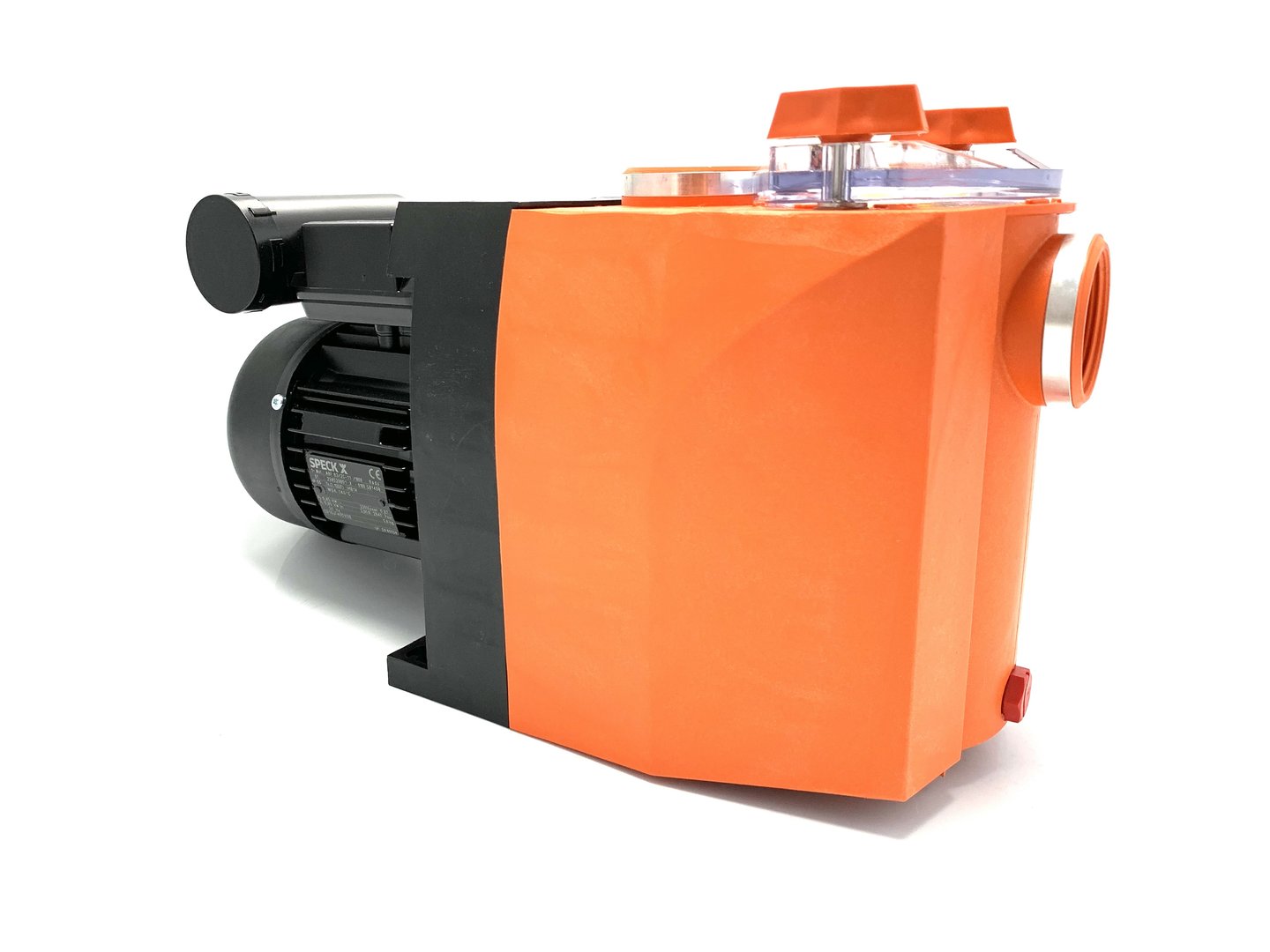

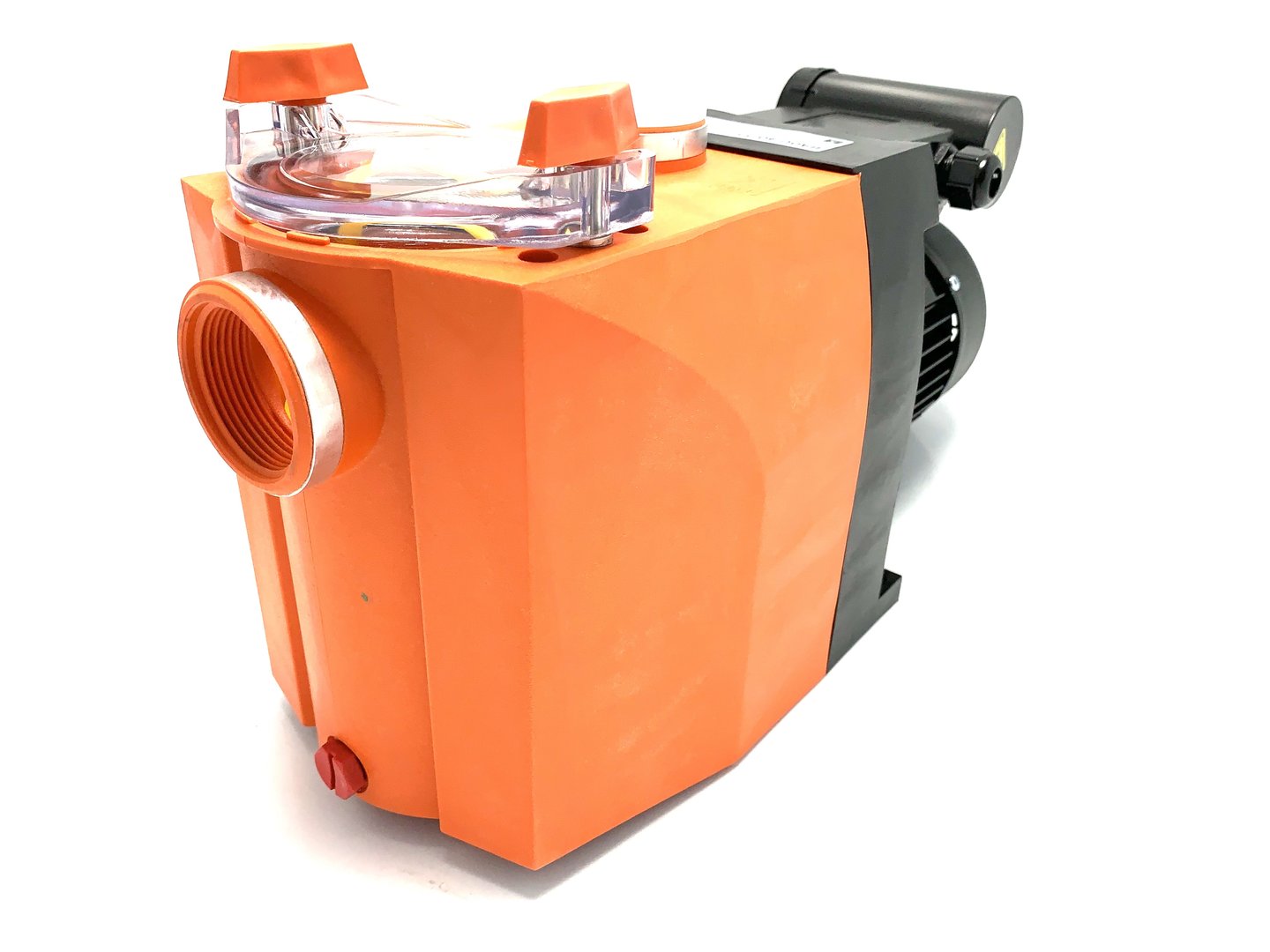

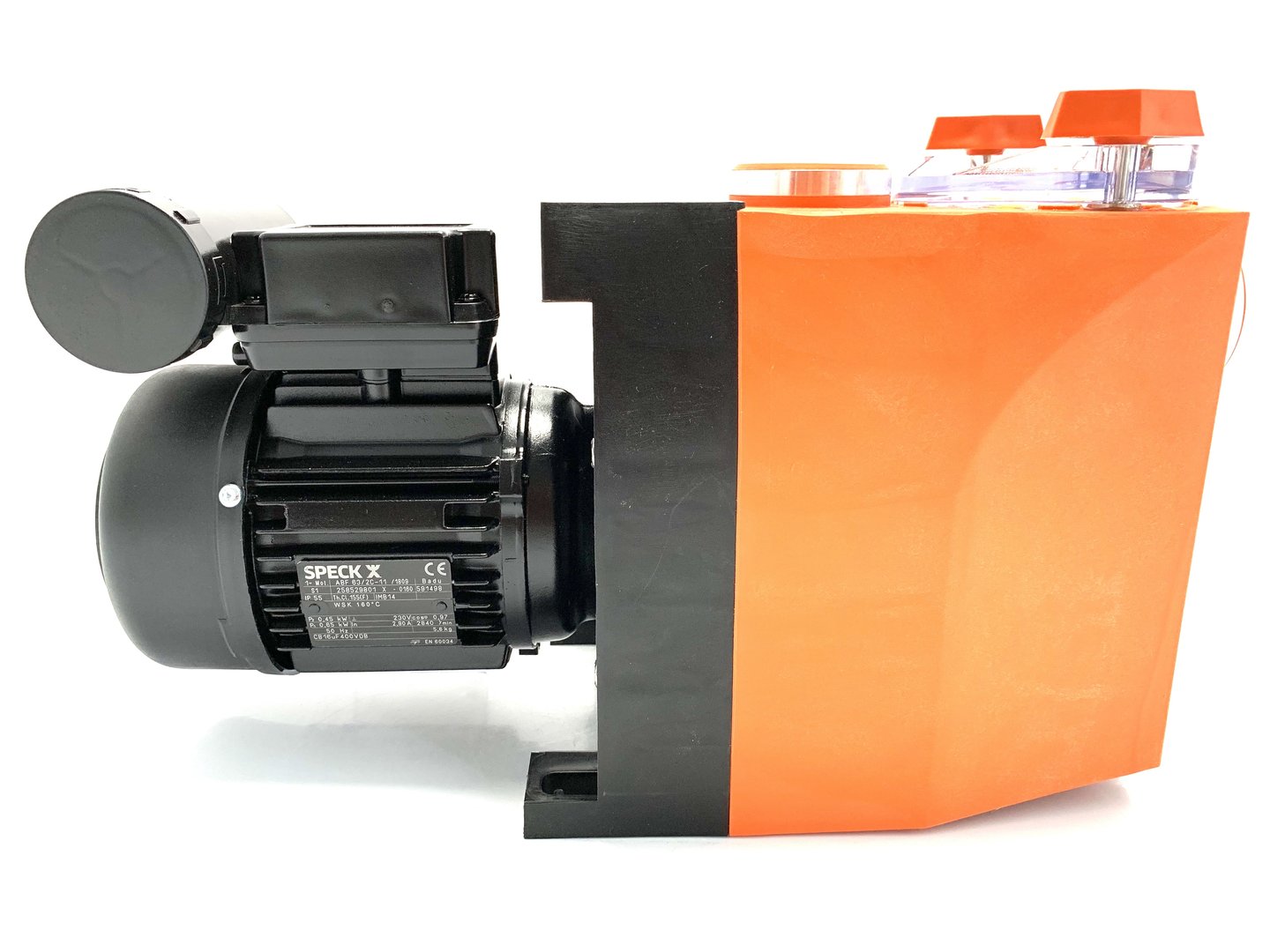

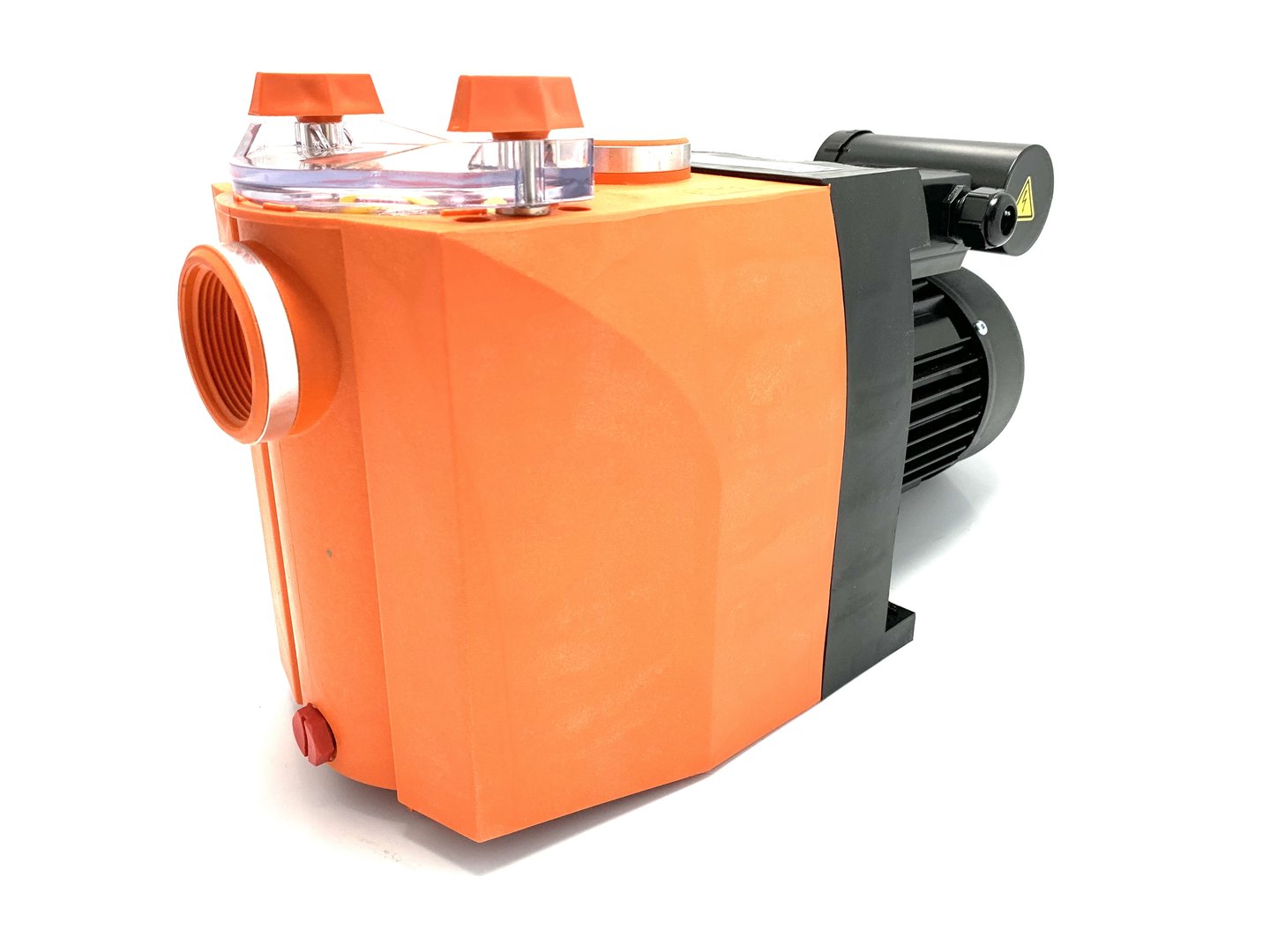

Self-priming filtration circulation pump BADU 40/7 We., alternating current version for pool sizes of approximately 30-60 m³. Scope of delivery by manufacturer without cable and without plug.
1~ 230 V
Hmax: 12,5 m
Qmax: 10 m³/h
techQ: 7 m³/h
techH: 8 m WS
Pool size: 30 - 60 m³
Power output: 0.30 kW
Inlet / outlet connection(Rp): 1 1/2" / 1 1/2"
Swimming pool water circulation through a filter system. The pump can be installed max. 3 m above or below water level.
Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water providing complete electrical separation.
| Pool equipment: | Circulation pump |
| Pool size in m³: | 30 - 60 |
| Filter size in mm: | 450 - 500 |
| Flow rate Q in m³/h: | 7 |
| Total head H in m WS: | 8 |
| Motor performance in kW (P2): | 0.30 |
| Strainer capacity in l: | approx. 0.5 |
| Strainer basket mesh size in mm: | approx. 2.8 x 2.8 |
| Pool type: | Outdoor pool, Indoor pool, Natural pool/swimming pond |
| Installation: | Above ground pool, Built-in pool |
| Pump casing: | PP GF 30 |
| Diffuser: | PP GF 30 |
| Impeller: | PP GF 30 |
| Strainer basket: | PP |
| Mechanical seal: | carbon / ceramic / NBR |
| Intermediate housing: | PP GF 30 |
| Gland housing: | PP GF 30 |
Special motors on request.
The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i. e. 5 g/l.
For higher salt concentrations please contact us.
Also available in AK version
